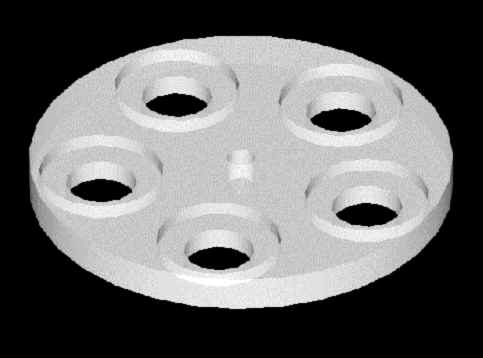

| This is a program example for a Bridgeport machining center using EZtrak software. The program machines two circular disks each with five counterbored holes and a through hole. All holes are machined using an eighth inch endmill. The part is made of UHMW and is used as guide for rods.0000 EZTRAK 1 MODE|INCH |MON MAY 15 01:56:56 2000 0290 DR|ROW ABS X0 Y0 Z.3 X-3.21 Y0 P2 0300 DR|PT ABS X-10 Y3 Z.3 0010 CIRCLE PKT X-.5 Y-.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0020 CIRCLE PKT X-.5 Y.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0030 CIRCLE PKT X-1 Y0 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0040 CIRCLE PKT X-2.21 Y0 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0050 CIRCLE PKT X-2.71 Y-.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0060 CIRCLE PKT X-2.71 Y.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0070 CIRCLE PKT X-3.71 Y-.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0080 CIRCLE PKT X-3.71 Y.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0090 CIRCLE PKT X-4.21 Y0 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0100 CIRCLE PKT X.5 Y-.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0110 CIRCLE PKT X.5 Y.866 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0120 CIRCLE PKT X1 Y0 Z.3 R.22 P.0 P0 P.125 D.25 F20 F0 0130 CIRCLE PKT X-.5 Y-.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0140 CIRCLE PKT X-.5 Y.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0150 CIRCLE PKT X-1 Y0 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0160 CIRCLE PKT X-2.21 Y0 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0170 CIRCLE PKT X-2.71 Y-.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0180 CIRCLE PKT X-2.71 Y.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0190 CIRCLE PKT X-3.71 Y-.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0200 CIRCLE PKT X-3.71 Y.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0210 CIRCLE PKT X-4.21 Y0 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0220 CIRCLE PKT X.5 Y-.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0230 CIRCLE PKT X.5 Y.866 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0240 CIRCLE PKT X1 Y0 Z.06 R.44 P.0 P0 P.125 D.25 F20 F0 0250 CIRCLE OUT X0 Y0 Z.3 R1.48 P.0 P0 D.25 F10 F0 0260 CIRCLE OUT X-3.21 Y0 Z.3 R1.48 P.0 P0 D.25 F10 F0 0310 DR|PT ABS X-10 Y3 Z.3 0270 || STOP This is a rendering of the part for the program above.
|
