This is the double sided coater, it is designed to coat both sides of a web at the same time and to also has the capability of coating tear sensitive mediums.

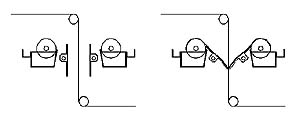

Below is the concept drawing which illustrates the basic operating principles of the coater.  The blade assembly which meters coating from the pickup roll and also applies coating to the web can rotate and immediately disengage the web which protects the web from tear out if the corrugator stops.

This drawing illustrates the web path for the coater.

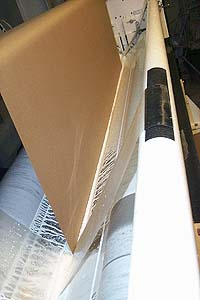

This photo shows the blade assemblies engaging the web and applying coating.

This drawing illustrates the serpentine belt design which allows both pick up roll to be driven with one motor.

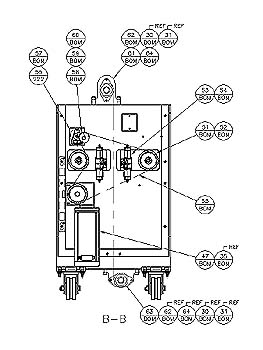

This drawing is a segment of the coater assembly drawing.
